Canon L-1 Rangefinder


The L-1 is among my favorite Canon Rangefinders.      Like all but the very early Canons, it takes the standard Leica screw mount and falls into the generic "Leica Copy"group.    The L-1 is basically a   VT  (see separate profile)  with  lever advance  instead of a bottom trigger advance, lever rewind instead of knob rewind, and no self timer.    All Canon L-1's are relatively hard to find, since only slightly less than 8000 were made in 1957.   The great majority are chrome.   Black L-1's are very rare, I estimate less than 200 produced.

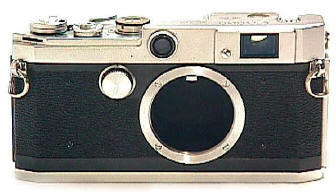

wpe4C.jpg (22428 bytes)The L-1 has beautifully clean aesthetic lines.  A very large elegant rewind knob folds over into the top plate.  The three position non-brightline non-parallax corrected finder is controlled by the serrated wheel near the rear eyepiece.  The finder position  is shown on the "35, 50, RF" scale on the top plate. The RF increased magnification position roughly corresponds to a   135 lens.  The L-1's gold coated rangefinder usually stands the test of time rather well, better than the silver coated rangefinder in the later    Canon VI, VI-T, and P.   It's a very pleasant camera to shoot.

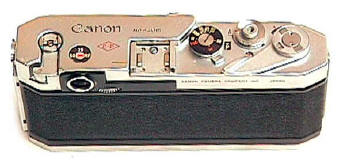

wpe4E.jpg (39186 bytes)The shutter has separate low and high speeds, with the high speed dial rotating in traditional Leica tradition. This also allows for easy double exposures, just rotate the shutter speed dial back until it locks and is ready for another shot.  The lever mounted around the high speed shutter dial controls the synchronization setting for flash or flash bulbs.   The AR collar around the shutter release is the film rewind switch.   The film counter is manually set, controlled by the serrated wheel just below and to the right of the film advance.   Like the other Canon V, VI variants, the L-1 has a nice film indicator transport just in back of the shutter release.   Shutter range is a conventional 1-1/1000th plus B, T,  and X (at 1/50th).

The most interesting L-1 feature is just barely visible here -- the round ball in the middle front of the accessory shoe.   This is a rather amazing device which was share by the rest of the Canon V/VT family -- automatic viewfinder parallax correction!  So far as I know, these Canons are the only cameras to have such as feature --  too bad Leica did not copy it.   It takes a special series of finder which mate to the ball in the accessory shoe.   As you focus, the ball goes up or down, compensating for parallax.

Compared to the various bottom trigger advance Canon V and VI,  I find the L-1 much more comfortable to use. While detachable Leicavit style trigger advances have their useful place,  in non-detachable form they become a problem due to their always added weight and bulk, not so great tripod handling, and inability to follow moving action (you need a 3rd hand to focus while your left hand advances the film and your right hand releases the shutter)..

Canon RF models are a bit confusing, with many variations being considered a separate model.     Ironically the lower production and less featured   L-2  and L-3 are worth more than L-1's  in today's collector's market.   The L-2 has a top speed of 1/500th, knob rewind, and flash sync for flash bulbs but not flash.  The L-3 is a  L-2 with no flash sync.

After Canon switched to a silver coated rangefinder and stainless steel shutter curtain in the VT Deluxe,  two lever advance cameras continuing the L-1 genre were produced on the VT Deluxe theme.   These L-1 look-alikes  are the VL with a top speed of  1/1000th and the VL-1 with a top speed of 1/500th.

    Black   L-1

Black Canon Rangefinders  are as rare and desirable as Black Nikon Rangefinders.







  Unlike many Canon rangefinders, the L series were all clearly marked on the baseplate.
