Zunow

premiere Japanese independent fast lens maker

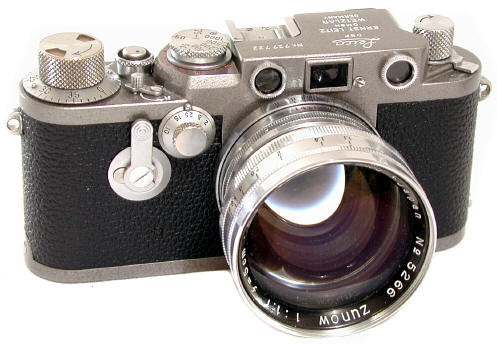

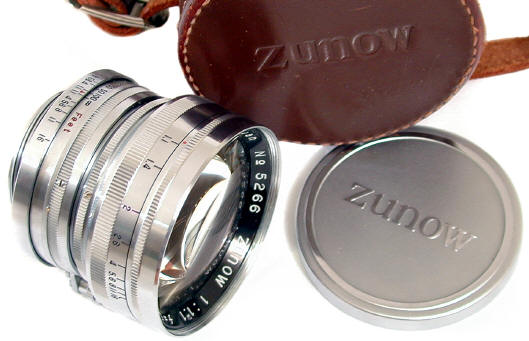

the most famous Zunow lens was the 50/1.1 in Leica Screw Mount or Nikon Rangefinder Mount

Zunow was  a small independent Japanese lens company known for its brilliant designs, and their lack of financial backing.       Zunow was a prominent maker of  quality high speed optics in the middle to late 1950's.   Initially their lenses were all chrome,    but some late lenses were also made in black.  ANY Zunow lens is rare today, but that is especially true for the black lenses.

Lenses made for Leica, Contax, and Nikon Rangefinders include the 35/1.5, 35/1.7, 50/1.1, and 100/2.  A 58/1.1 was also made in Exakta and Pentax/Praktica mount.     I also found reference to a 75/1, but the mount was not stated.   The first Miranda lens was a 50/1.8 Zunow.    Zunow also occasionally supplied lenses to other Japanese camera makers, as well as making their own line of C mount movie lenses.

Though a tiny company, the fit and finish of Zunow lenses compared favorably with the best from Nikon or Canon.

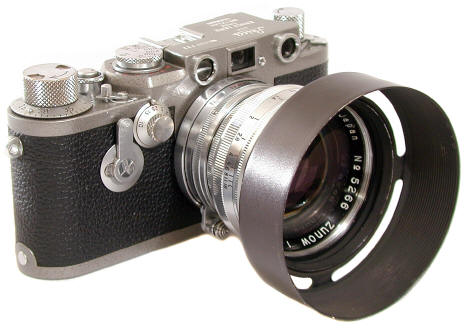

The 50/1.1 Shade is even rarer than the lens.

the 100/2 Black Zunow in Leica mount

the 100/2 fitted to an M6, and the 50/1.8 Zunow for the legendary Miranda Orion

  Zunow SLR

In  August 1958 Zunow began production of its first (and last) camera.    The advanced  small bodied Zunow SLR boasted an impressive list of features for its time including:





• 58/1.2, probably the fastest 35mm SLR lens up to that time

• Zunow Lens lineup included 35/2.8, 50/1.8, 58/1.2, 100/2, 200/4, 400/5.6, 800/8.  The shorter lenses up to 100mm  had automatic diaphragms.   As rare as the Zunow SLRs are, the lenses are even rarer.

• Bright 100% viewfinder

• Breech lock mount

• Instant return mirror called the "Wink Mirror System"

• Automatic diaphragm called the "Zunow-matic Diaphragm System"

• Interchangeable finders

• Interchangeable focusing screens

• Shutter lock

• Lens depth of field button, which had to be reset after viewing for automatic operation

• Unusual front mounted square shutter release on right (threaded for cable release)

• Shutter speed range of 1 second to 1/1000 on a single, non-rotating shutter dial.  Dial rotated around the film advance, with the now standard shutter speed sequence.  Speeds were evenly spaced on the dial, and easy to see as a result.

• No self timer

• Self resetting film counter

• Red flag in film counter after shutter tripped, but not advanced

• Single 180 degree throw advance lever

• Automatic FP or X synchronization

• Detachable pro bulk film back for up to 400 exposures

• Adapters to permit use of Exakta, Pentacon (Pentax 42mm) and Leica lenses

• Announced, but apparently not marketed, were a motordrive and a 400 exposure back.

• Accessories included a waist level finder, copy stand, filters,   flash bracket, leather cases.

The Zunow SLR was an outstanding design for it's time.    Compare the list above and it becomes obvious the Zunow had much influence with the designers of the Nikon F.  Alas, apparently due to limited resources, the Zunow SLR was not very successfully marketed.    It is extremely rare and prized today.   According to an early press release,  the Zunow hand built assembly line achieved the blazingly fast production rate of eight cameras per day.     I would guess only a few hundred were made, but I have never seen any Zunow production figures.   Perhaps Zunows are more common in Japan, but in the US at least where they were never officially imported, they are next to impossible to find.

The Zunow SLR was an outstanding design for it's time.    Compare the list above and it becomes obvious the Zunow had much influence with the designers of the Nikon F.  Alas, apparently due to limited resources, the Zunow SLR was not very successfully marketed.    It is extremely rare and prized today.   According to an early press release,  the Zunow hand built assembly line achieved the blazingly fast production rate of eight cameras per day.     I would guess only a few hundred were made, but I have never seen any Zunow production figures.   Perhaps Zunows are more common in Japan, but in the US  where they were never officially imported, they are next to impossible to find.
